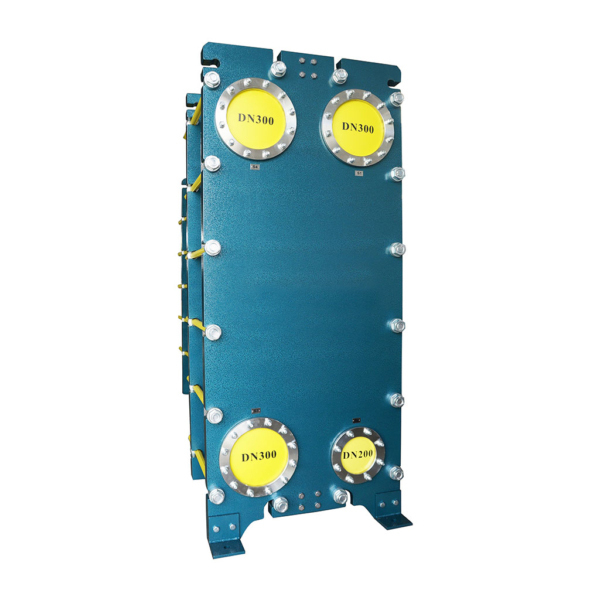

Plate Heat Exchanger M30

Contact us for detailed product information.
Description Review

Ordering Information

The heat exchange and equipment size is subjected by the size and number of plates, some of the classical and basic dimension information of the plates as follows:

m10m plate size

Plate Material Characteristics
Drink water, None Corrosive Liquid, Oils, Fresh Steam etc.
Well water, river water, closed circulating water and other water with complex components, Dilute sulfuric acid with temperature ≤ 50 ℃ and concentration ≤ 10% etc.
Liquid that contains chlorine iron, Sea water etc.
Titanium Alloy
Higher temperature and corrosion resistance than titanium.
Nickel 20
It is mainly used for caustic solution (NaOH, Koh, etc.) with high concentration (50% ~ 70%) and high temperature (boiling point).
Hastelloy C-276
It has good corrosion resistance, almost not affected by Cl -, excellent corrosion resistance to various concentrations of
sulfuric acid, and is one of the few materials that can be used in hot concentrated sulfuric acid, widely used in organic acids
(such as formic acid, acetic acid), high temperature HF acid and a certain concentration of hydrochloric acid (< 40%), phosphoric
acid (< 50%); chloride, fluoride.


Gasket Material Charactristics
Working Temperature
Working Enviroment
Alkane, olefin and other non-polar media, all kinds of mineral oil, animal and vegetable oil, hot water, salt water, etc。
Superheated water, steam, atmospheric ozone, non petroleum based lubricating oil, weak acid, weak base, ketone alcohol, etc
Crude oil, sulfur-containing oil and organic sulfur compounds, some heat transfer oil, new refrigerant 134a, etc
Nonpolar mineral oil, high temperature water vapor, sulfuric acid, chlorine water, phosphate with concentration above 98%
